Application

HECHO - DC PV Solar cables are designed for connecting photovoltaic power supply systems. They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of a 1.5kV. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. These cables are designed to withstand the demanding environmental conditions that arise in any fixed, mobile, roof or architecturally integrated photovoltaic installation.

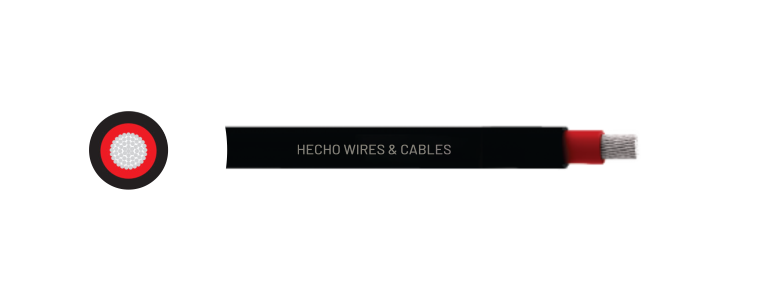

Construction

Conductor : Flexible Electrolytic Bore/Tinned fine copper strands, acc. to IEC 60228, class 5

Insulation : Crosslinked Halogen Free & Flame Retardant Insulation ,

Colour : White , Red Or Black Sheathing : Crosslinked Halogen Free & Flame Retardant UV and ozone resistant

Colour : RED or BLACK or any other customized requirements.

Packaging : In coils of 100 mtrs, 300 mtrs or drum length or as per customized requirements.

Features

* Operating Temperature from - 40° C to 90° C.

* Better UV & Ozone resistance and improved weather resistance in adverse conditions.

* Improved Oil & Chemical resistance, improved crack resistance.

* Improved Mechanical properties of the cables in elevated temperature conditions

* Improved Flammability properties. * Fire performance : IEC 60332- 1- 2

* Smoke emission : IEC 61034- 2 / EN 50268- 2

* Halogen Free : IEC 60754 - 1 (HCL Content Co. 5%)

* Maximum Temperature at conductor 120° C

* Votlage Rating : U0/U=600/1000 V AC, 1800 V DC

* Test Voltage : 6.5KV 50 Hz, 15 KV DC for 5 Min * Bending Radius : 4 x Ø (Cable OD)
