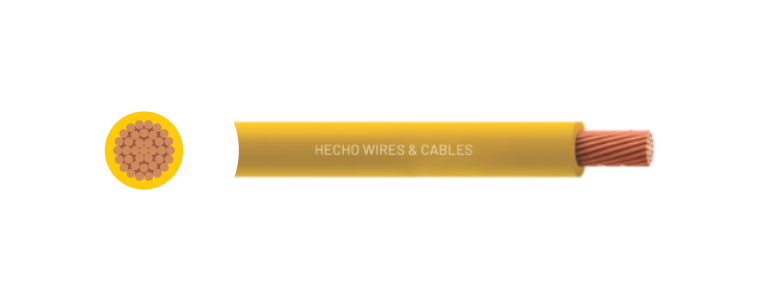

Auto Cables
Application
Hecho automobile cables are mainly used for wiring harness which is used in automobile like heavy vehicles, four wheelers, three wheelers and two wheelers.
Construction
Conductor : 99.97% pure ELECTROLYTE grade annealed bare copper. Insulation : PVC with high insulation resistance.
Packaging : Packed in coild of 100 meters in attractive corrugated box. Or in longer lengths as per customized requirements
Features
Hecho auto cables are manufactured from bright-annealed 99.97% pure bare copper conductors, which offers low conductor resistance.The PVC compound used in the cables is manufactured with special formulation which is impervious to water, oil, grease, acids, etc. Hecho auto cables can operate in extreme climatic conditions from 40° C to 105° C, which makes them popular worldwide.These cables are abrasion resistant and is designed to meet stringent environmental regulations worldwide.
| TECHNICAL SPECIFICATIONS | |||||||
| (Generally confirms T?V 2PfG- 1169/08_2007 Pv1- F) | |||||||
| NominalSize +1 | Conductor {Annealed copper stranded conductors} | Insulation | Over all Diameter | Conductor Resistance at 20° C Calculated m?/m | |||
| Construction | Calculated Area | Outer Diameter | Thickness | Standard | Max. | ||
| 0.5 | 7 / 0.32 | 0.5629 | 1.0 | 0.6 | 2.2 | 2.4 | 32.7 |
| 0.85 | 11 / 0.32 | 0.8846 | 1.2 | 0.6 | 2.4 | 2.6 | 20.8 |
| 1.25 | 16 / 0.32 | 1.287 | 1.5 | 0.6 | 2.7 | 2.9 | 14.3 |
| 2.0 | 26 / 0.32 | 2.091 | 1.9 | 0.6 | 3.1 | 3.4 | 8.8 |
| 3.0 | 41 / 0.32 | 3.297 | 2.4 | 0.7 | 3.8 | 4.1 | 5.59 |
| 5.0 | 65 / 0.32 | 5.228 | 3.0 | 0.8 | 4.6 | 4.9 | 3.52 |
| 8.0 | 50 / 0.45 | 7.952 | 3.7 | 0.9 | 5.5 | 5.8 | 2.32 |
| 15.0 | 7 / 12 / 0.45 | 13.360 | 5.4 | 1.1 | 7.8 | 8.0 | 1.38 |
| 20.0 | 41 / 0.80 | 20.610 | 6.1 | 1.1 | 6.1 | 8.8 | 0.887 |
| 30.0 | 70 / 0.80 | 35.19 | 8.0 | 1.4 | 10.8 | 11.5 | 0.520 |
| 40.0 | 85 / 0.80 | 42.73 | 8.8 | 1.4 | 11.4 | 12.1 | 0.426 |
| 50.0 | 108.08 | 54.29 | 9.8 | 1.6 | 13.0 | 13.8 | 0.337 |
